Used Thermoforming Illig RV 74 (Vente)
Prix :10 € ht
Année : 1997
Marque : Illig
Modèle : RV74
Etat : Tres bon état

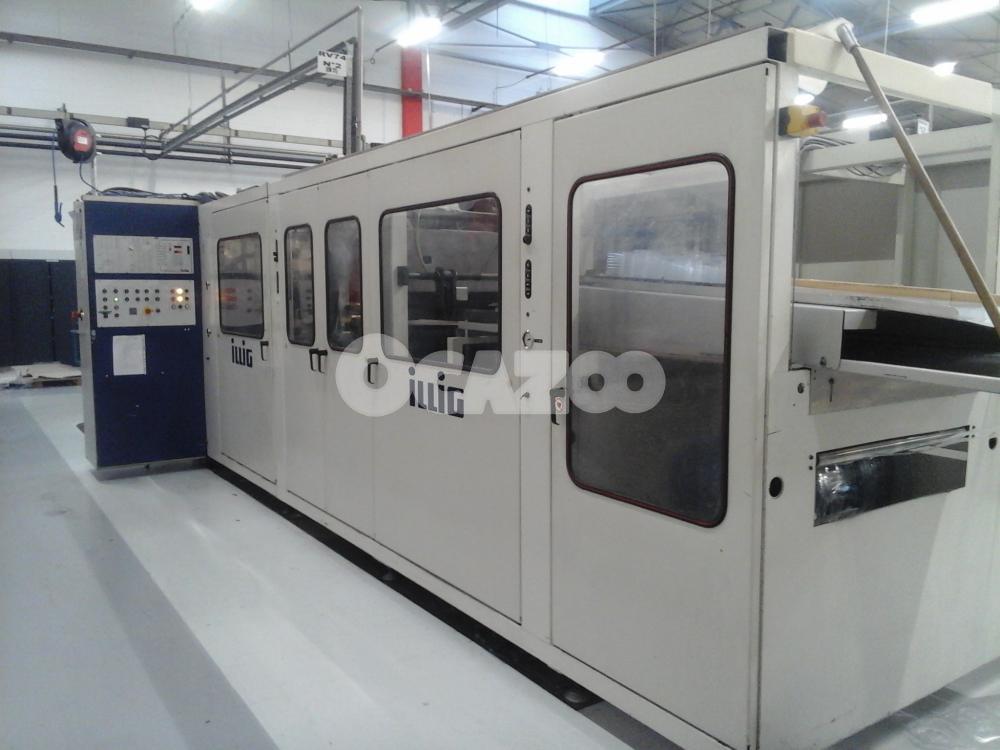

Thermoforming Illig RV 74
used machine
Illig RV 74
Year : 1997
Forming Area (Vxh): 700x500
Depth Of Draw: 120 mm
Material Thickness (Min): 0,15 mm
Material Thickness (Max): 2 mm
Number Of Stations: 3
Feeding Systems:Roll fed
Other Specifications:
Forming - cutting - stacking
Forming machine:
Min-max forming area : 400x250-700x500
Min-max film width: 440-750mm
Height of parts above / below the film level: 120 / 40mm
Diameter of Film Reel: 1200mm
Connected electric power from upper-lower heater: 16.2kW
Level of the film: 1300mm
Max speed: 20 / min
Weight: 2600kg
Vacuum forming only
Cutting unit :
Cutting area at top and bottom table: 700x500mm
Cutting height above / below film level: 120 / 40mm
Cutting force: 50,000 daN
Connected electric power of heating: 6.4kW
For more information contact us snvimachinery@gmail
